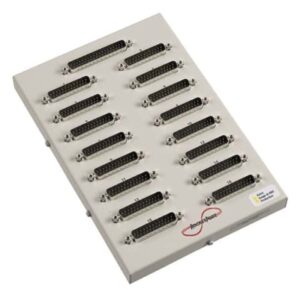

RocketPort® 16-Port DB25M Surge Interface

RocketPort 16-Port DB25M Surge Interface


  • RocketPort Infinity / Express Compatible Interface
  • Panel Mount Interface with 16 x DB25M Serial Ports
  • 25KV surge protection
  • RS-232/422/485 software selectable interface
  • Windows & Linux Driver Support

The RocketPort 16 DBM Surge Interface is compatible with the RocketPort Infinity and Express controllers.

The 16 serial ports can be configured for RS-232/422 or 485 serial communications, supporting speeds up to 460Kbs.

The interface provides 25KV surge protection on the serial ports, and contains an additional connection for the host interface cable.

This product is not usable with the older RocketPort ISA, PCI or uPCI products.
