iConverter® CWDM Multiplexers
CWDM multiplexers and Optical Add-Drop multiplexers
Omnitron’s iConverter CWDM multiplexers and Optical Add-Drop multiplexers are protocol and rate transparent to enable up to sixteen channels (wavelengths) of Ethernet, TDM, SONET and other services to be transported across a common fiber link. iConverter CWDM MUX modules are available in 4 and 8-Channel models, supporting a variety of wavelength combinations and port configurations. The Optical Add+Drop modules add (multiplex) and drop (demultiplex) one or two selected channels on one or both directions of a common fiber link.
- Passive devices that are protocol and rate transparent
- Supports up to 10Gbps per channel
- Support single-mode and multimode fiber
- Highly compact form factor with up to 120 ports in a 2U chassis
iConverter CWDM MUX modules are compatible with iConverter copper-to-fiber media converters and fiber-to-fiber transponders to provide CWDM connectivity to existing network equipment. The iConverter Multi-Service Platform enables fiber connectivity to deliver Ethernet, TDM, SONET and other services across a single-fiber or dual fiber CWDM common link.
CWDM MUX and OADM Modules
CWDM Multiplexers with 4 or 8 Channels

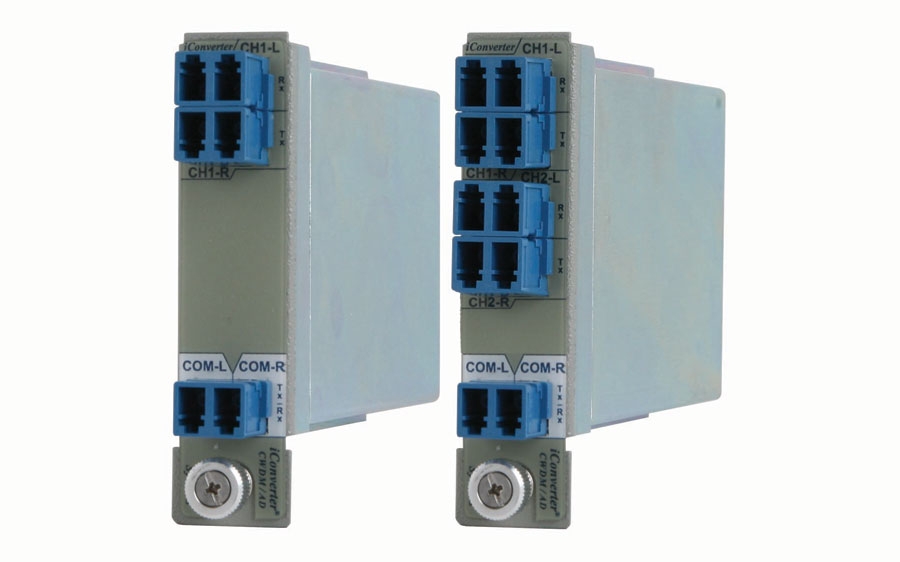

iConverter® Single Fiber CWDM Multiplexers & Add/Drop OADM
Chassis for CWDM Multiplexer Modules

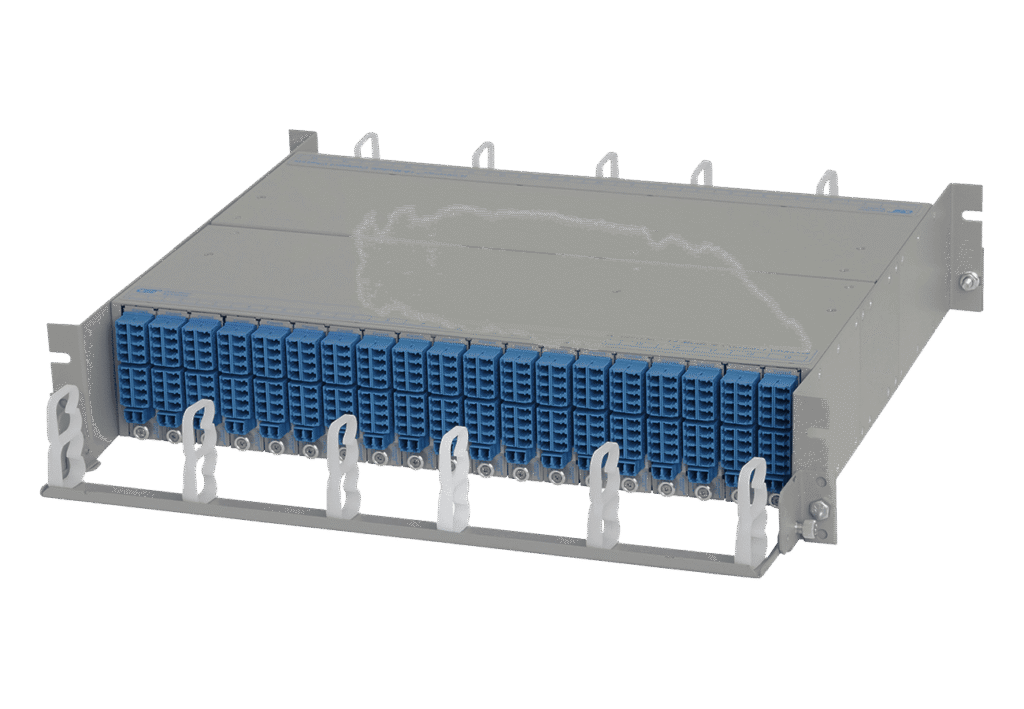

19-Module Compact Chassis

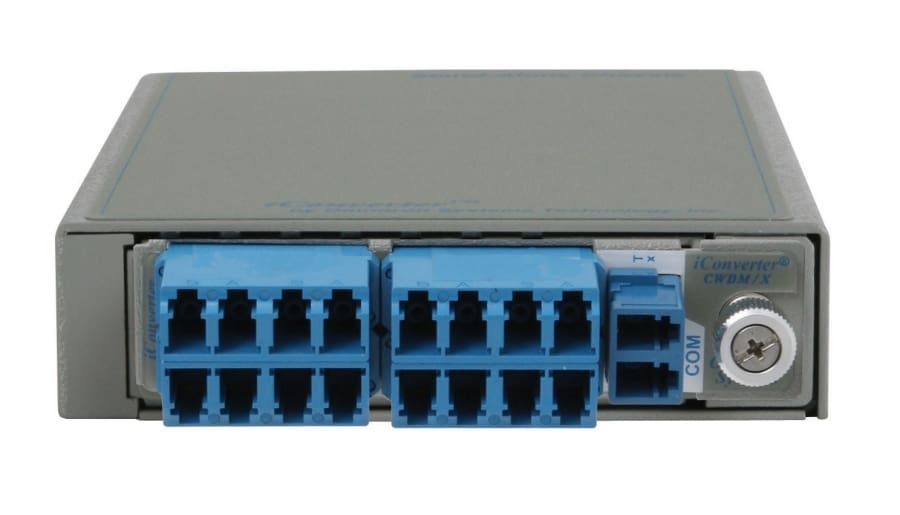

1-Module Passive Chassis

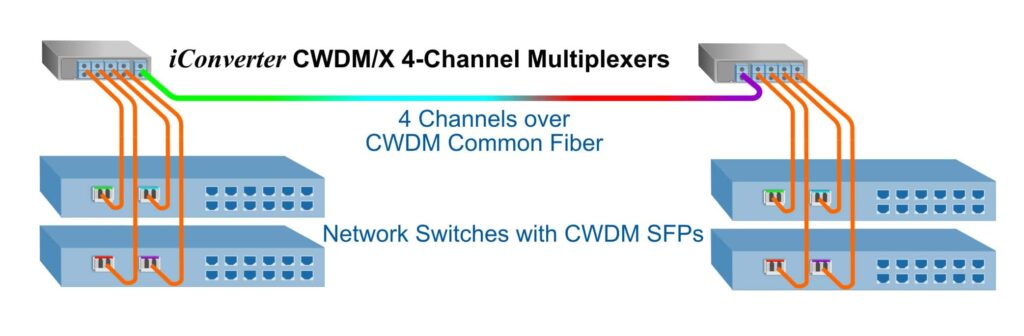

How to use iConverter CWDM Multiplexers
CWDM Multiplexers expand the capacity of existing dual fiber, single-fiber, single-mode and multimode fiber infrastructure.
