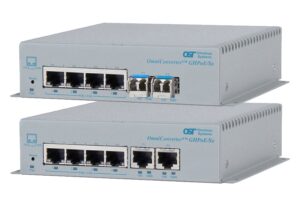

OmniConverter® GHPoEBT/Sx
Unmanaged 6-Port 60/100W IEEE 802.3bt PoE Gigabit Switches
The OmniConverter GHPoEBT/Sx are compact unmanaged Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 IEEE 802.3bt 60W or 100W PoE user ports.
The OmniConverter PoE switches are standard Layer 2 Ethernet switches that forward frames to any port based on their MAC address.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
Models with two fiber or two copper uplink ports support daisy-chain configurations or redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.
Models with two fiber or two copper uplink ports also support Dual Device mode that enables the switches to operate as two independent and isolated Ethernet switches. In Dual Device mode, the switches provide separate and independent data traffic paths between each uplink and a pair of user ports.
The switches are available with fixed fiber ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140km. SFP models support a variety of distances in standard and CWDM and DWDM wavelengths.
The switches automatically negotiate and deliver the power level required by a Powered Device (PD) partner. The switch can deliver up to 60 or 100 Watts of power per user port depending on the model.
The switches feature a PoE power reset function that enables the attached PD device, such as a camera or access point, to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is detected, the fiber port on the module can be disconnected, triggering the PoE power reset function.
All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
Features
- Unmanaged High-Power 60W/100W PoE Gigabit Ethernet Switches
- Supports the IEEE 802.3bt 60W or 100W
- Dual Device mode for operating as two separate switches
- Directed Switch mode prevents flooding of multicast video traffic
- Configurable PoE Power Reset
- Uplink redundancy on models with two uplink ports
- Two 10/100/1000 copper or 100M*/1G fiber uplink ports
- Four 10/100/1000 copper PoE user ports
- ST, SC and LC fixed fiber ports or standard, CWDM or DWDM Gigabit SFP transceivers
- AC to DC Power Adapter or 2-Pin DC terminal
- Wall, Rack and DIN-rail mountable
- Fan-less design for long life
- Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
- TAA, BAA and NDAA compliant, and Made in the USA
- Free 24/7/365 Technical Support
*100Mbps supported with 100M SGMII SFP Transceivers
| Description | OmniConverter® GHPoEBT/Sx (60/100W BT) 10/100/1000BASE-T with Gigabit Fiber or Copper Uplinks Unmanaged 6 Port IEEE 802.3bt PoE Ethernet Switch | ||
|---|---|---|---|
| Standard Compliances | IEEE 802.3, IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max) IEEE 802.3bt (60 and 100 watts max) | ||
| Regulatory Compliances | Safety: UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark, UKCA EMC: EN 55032/24 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models), IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models), IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models), IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models), IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 (Magnetic Field) 30A/m, IEC 61000-4-11 (Voltage Dips, interrupts) IP Rating: IP20 Protection ACT: TAA, BAA, NDAA | ||
| Environmental | REACH, RoHS and WEEE | ||
| PoE Modes | IEEE Alternate A (Alt A) 4-Pair | ||
| Frame Size | Up to 10,240 bytes | ||
| Port Types | Copper: RJ-45: 10/100/1000BASE-T Fiber: Fixed: ST, SC, LC 1000BASE-X Fiber SFP: 10/100/1000BASE-T SGMII Copper Transceiver or 100BASE-X SGMII Fiber Transceiver or 1000BASE-X SERDES Fiber Transceivers | ||
| Cable Types | Copper: EIA/TIA 568A/B, Cat 5 UTP and higher Fiber: Multimode: 50/125, 62.5/125μm Single-mode: 9/125μm | ||
| AC Power Requirements (Models with AC/DC Adapters) | 100 – 240VAC/50 – 60Hz 3.5A max at 115VAC 2.5A max at 230VAC | ||
| DC Power Requirements (Models with DC Terminals) | 60W Models: +46 to +57VDC; 4.46A @ 56VDC 2 Pin Terminal (isolated) | 100W Models: +46 to +57VDC; 7.31A @ 56VDC 2 Pin Terminal (isolated) | |
| Dimensions (W x D x H) | 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm) | ||
| Weight | Module Only: 1.6 lbs.; 735 grams Module with AC/DC Adapter: 3.7 lbs.; 1703 grams | ||
| Operating Temperature (See Temperature Derating Table) | Commercial: 0 to 50°C Wide: -40 to 60°C (-20°C AC cold start) Extended: -40 to 75°C – not available for models with AC/DC Adapters Storage: -40 to 80°C | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Altitude | -100m to 4,000m (operational) | ||
| MTBF (hrs) | Module Only: 277,000 AC/DC Adapter: 100,000 | ||
| Warranty | 5 year product warranty with 24/7/365 free Technical Support 2 year AC power adapter warranty | ||
Dual Device Mode Application
This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.
The example below depicts a scenario where a surveillance security (green) network and a Wi-Fi (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single PoE switch driving both the Cameras and the Wi-Fi Access Points while maintaining isolation between the networks.
Daisy Chain Application
This example demonstrates the daisy chain capabilities of the OmniConverter PoE switches. In this application each OmniConverter switch connects to its neighboring switch via its uplink ports. The daisy chain can continue to additional switches using this method of connectivity.
Each OmniConverter switch provides connectivity to the fiber links, and 802.3bt power to IP cameras and Wi-Fi access points at each location along the daisy chain.
