RuggedNet® G/Mi
Managed Industrial 6 and 10 Port Gigabit Ethernet Switch
The RuggedNet G/Mi is a ruggedized industrial Gigabit Ethernet switch featuring fiber or copper uplink ports, along with four or eight 10/100/1000 RJ-45 copper user ports. It facilitates the extension of industrial network distances using either fiber or copper cabling.
As a standard Layer 2 Ethernet switch, the RuggedNet G/Mi routes frames to any port based on MAC addresses.
It also supports Directed Switch mode, channeling multicast traffic, such as video, exclusively to the designated uplink port to prevent network port flooding.
Models equipped with dual fiber or copper uplink ports offer redundant uplinks, support for industrial ring Media Redundancy Protocol (MRP), Spanning Tree Protocol, and daisy-chain configurations, enhancing industrial network application reliability.
These models also feature a Dual Device mode, allowing the G/Mi to function as two separate and isolated Ethernet switches. This mode provides distinct and independent data paths between the two uplink ports and the user ports.
Operational modes can be set using DIP-switches or through management interfaces like Web, Telnet, SSH, SNMPv1/v2c/v3, or Serial Console. The switches support IPv4 and IPv6 and offer management access to various filtering and security features, including broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+, and Access Control Lists, along with email notifications and alarm reporting.
Available models come with fixed ST, SC, LC fiber connectors, or Small Form Pluggable (SFP) transceiver receptacles. The fiber ports accommodate multimode or single-mode, dual or single-fiber, with distances up to 140km. SFP models are compatible with a range of distances in standard, CWDM, and DWDM wavelengths.
All models are designed for wall or rack mounting using a wall mount bracket and shelf, or for DIN-rail mounting with the included hardware.
An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
- Managed Industrial 6 and 10 port Gigabit Ethernet Switches with single or dual DC power
- Two 10/100/1000 copper or Gigabit fiber uplink ports
- Four 10/100/1000 copper user ports
- ST, SC and LC fixed fiber ports or standard, CWDM or DWDM Gigabit SFP transceivers
- Supports jumbo frames up to 10,240 bytes
- Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
- Easy to use Hierarchical Command Line Interface
- SNMP management via Omnitron’s NetOutlook® management software, or third-party SNMP software
- Supports IPv4 and IPv6
- IEEE 802.1x, RADIUS, TACACS+ and ACL
- Email Notification
- Rapid and Multiple Spanning Tree Protocol
- IEC 62439-2 Industrial Ring Media Redundancy
- IEEE 802.1ax LAG and LACP; Active/Active and Active/Standby
- Dual Device mode for operating as two separate switches
- Directed Switch mode AKA Camera mode to prevent port flooding
- Industrial (-40 to 75º C) operating temperature
- TAA, BAA and NDAA compliant, and Made in the USA
- Free 24/7/365 Technical Support
ADDITIONAL FEATURES
- IPv4 Internet Group Management (IGMP) and IPv6 Multicast Listener Discovery (MLD) snooping
- DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
- IEEE 802.1ab Link Layer Discovery Protocol
- Rate Limiting, Queue prioritization and Class of Service
- IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
- Port Access Control for enhanced security
- Static MAC configuration and blocking of unknown Unicast/Multicast addresses
- Broadcast / Multicast / Unicast Storm Prevention
- SNTP / NTP and time of day
- Alarm contacts and sensors
- Wall, Rack and DIN-rail mountable
- Fan-less design
| Description | RuggedNet® G/Mi 10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks Industrial Managed 6 and 10 Port Gigabit Ethernet Switch | |
|---|---|---|
| Standard Compliances | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP RFC 5424, RFC 4541, RFC 2710, IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1 | |
| Regulatory Compliances | Safety: UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark, UKCA EMC: EN 55032/24 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling) IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments) IP Rating: IP40 Protection ACT: TAA, BAA, NDAA | |
| Environmental | REACH, RoHS and WEEE | |
| Management | Pv4 and IPv6 address Web, Telnet, SSH, SNMPv1/v2c/v3 In-Band management via Ethernet port Out-of-band management via serial port | |
| Frame Size | Up to 10,240 bytes | |
| Port Types | Copper: 10/100/1000BASE-T (RJ-45) Fiber: 1000BASE-X (ST, SC, LC, SFP) 10/100/1000BASE-T SGMII (SFP) Serial: RJ-45 | |
| Cable Types | Copper: EIA/TIA 568A/B, Cat 5 UTP and higher Fiber: Multimode: 50/125, 62.5/125μm Single-mode: 9/125μm Serial: Category 3 and higher | |
| DC Power Requirements | 4 RJ-45 Ports: +12 to +57VDC; 0.68A @ 12VDC 0.17A @ 48VDC 2 Pin Terminal (isolated) | 8 RJ-45 Ports: +12 to +57VDC; 0.75A @ 12VDC 0.19A @ 48VDC 2 Pin Terminal (isolated) |
| Alarm Contact (Output) | 2 form C Relay for Normally Open and Normally Closed Operation 110VDC/125VAC Maximum Voltage 2A Maximum Current | |
| Alarm Sensor (Input) | 2.0ma @ 3.3VDC Closure Detection | |
| Dimensions (W x D x H) | 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm) | |
| Weight | 4 RJ-45 Ports: 1.70 lb.; 772 grams | 8 RJ-45 Ports: 1.77 lb.; 803 grams |
| Operating Temperature | -40 to 75°C | |
| Humidity | 5% to 95% (non-condensing) | |
| Altitude | -100m to 4,000m (operational) | |
| MTBF (hrs) | 282,000 | |
| Warranty | 5 year product warranty with 24/7/365 free Technical Support | |
Dual Device Mode Application
This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.
The example below depicts a scenario where the Quality Control (green) network and the Manufacturing (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single switch driving both the Quality Control and the Manufacturing devices while maintaining isolation between the networks.
Daisy-Chain and Ring Topology Network Application

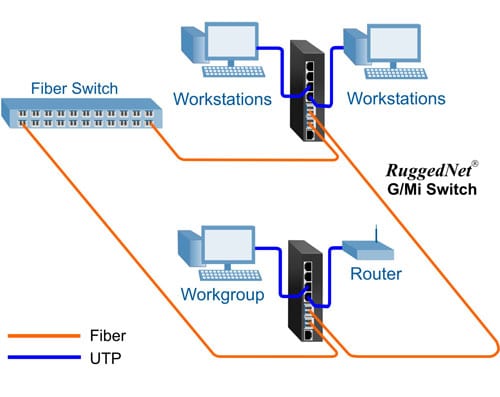

This example illustrates the daisy-chaining and ring capabilities of RuggedNet. In this setup, each RuggedNet switch is connected to its neighboring switches through its uplink ports, ultimately completing the ring. The RuggedNet switches provide connectivity between workstations and the router.
Employing this network architecture, along with ring protection protocols like Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP), ensures a highly resilient network essential for mission-critical applications.
