iConverter® 19-Module Compact Chassis

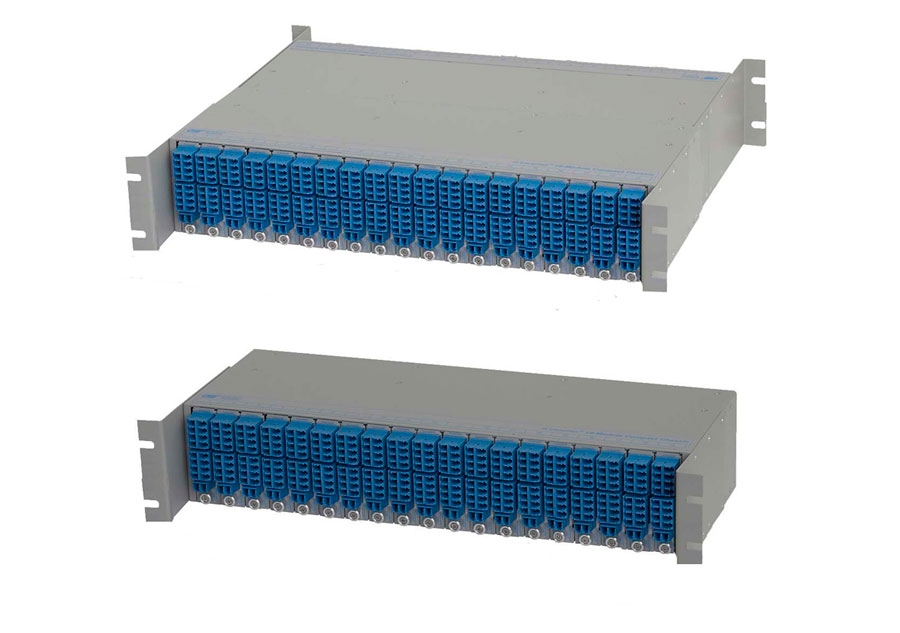

38-Module Dual Chassis and 19-Module Single Chassis
The iConverter 19-Module Compact Chassis provides an innovative approach to increase the number of CWDM or DWDM connections in a 2U (3.5 inch) high rack space. The short chassis design allows two chassis to be connected back-to-back supporting up to 38 CWDM or DWDM modules. This configuration provides up to 684 connectors or up to 608 simplex channels or 304 duplex channels.
The 19-Module Compact Chassis is designed for passive iConverter CWDM/DWDM modules that do not require power. The Chassis can be ordered as a single, frontloading chassis or as a dual front and rear loading chassis kit. The single chassis supports up to 19 modules and the dual chassis kit supports up to 38 modules. The single chassis can be upgraded to support rear loading by ordering another single chassis and optional coupling brackets.
This unique design allows the modules to be installed in the front or rear chassis providing the ideal configuration for high-density CWDM/DWDM fiber distribution applications.
| Description | 8210-1 | 8210-2 |
|---|---|---|
| Module Capacity | 19 | 38 |
| Dimensions W x D x H | 17.15” x 6.0” x 3.5” (435.6 mm x 152.4 mm x 88.9 mm) | 7.15” x 12.0” x 3.5” (435.6 mm x 304.8 mm x 88.9 mm) |
| Weight | 7.1 lbs. (3.22 kg) | 14.5 lbs. (6.58 kg) |
Humidity | 5% to 95% (non-condensing) | |
Altitude | -100m to 4,000m | |
Warranty | Lifetime warranty with product registration | |
